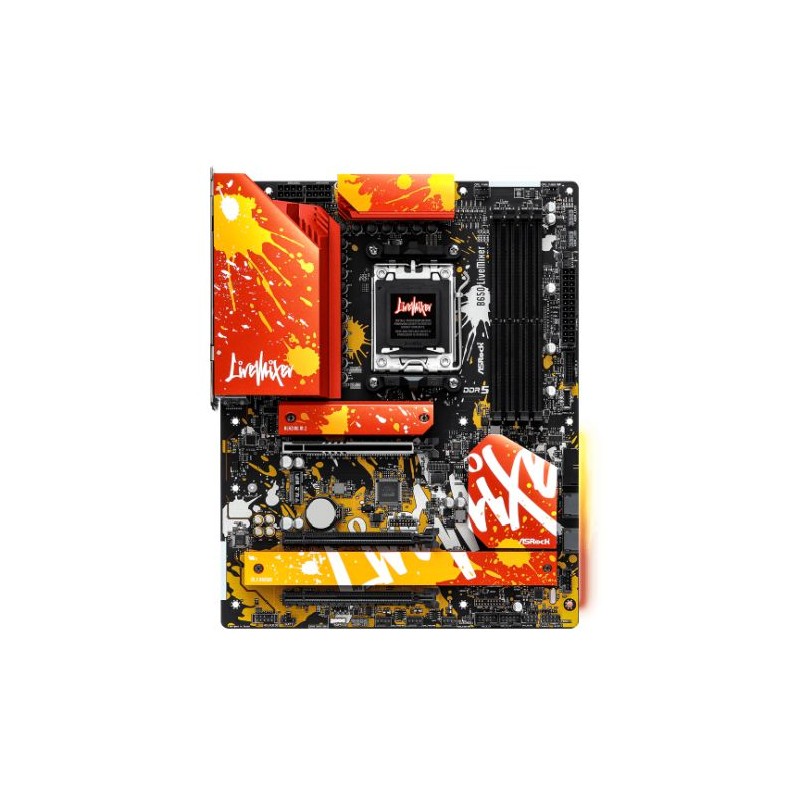

Asrock B650 LIVEMIXER, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, RGB, 3x M.2
£112.45
Tax included
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time. Supports AMD Ryzen™ 7000 Series Processors 14+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6400+(OC) 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Motherboard Type|Desktop|Form Factor|ATX|Socket|AMD AM5|Chipset|AMD B650|#Hide#DDR Type|DDR5|CPU Support|Click here for CPU support|RAM Technology|DDR5 (Dual Channel)|RAM Slots|4 x DIMM|RAM Speeds|Up to 6400+(OC)|Maximum Memory|256GB|Graphics|Integrated Graphics*
*Graphics specifications may vary between CPU types|Graphics Ports|1 x HDMI
1 x DisplayPort|Multi-GPU Support|Supports AMD CrossFire|PCI/PCI Express|1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x4 mode)|Storage|2 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe|RAID|Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices|Wireless|-|LAN|2.5GB LAN|Audio|7.1 CH HD Audio (Realtek ALC897 Audio Codec)|USB Ports Supported|1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 (4 at back*, 4 at mid-board)
12 x USB 2.0 (8 at back, 4 at mid-board)
1 x Front USB 3.2 Gen2x2 Type-C connector
*USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power|Back Panel I/O Ports|2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
8 x USB 2.0 Ports
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack|Internal I/O Connectors|1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0|.|2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2|Accessories|1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket|Additional Features|See Overview / Video|Package Type|Retail|Package Weight|2.5000 kg|Warranty|3 Year Replacement Warranty|#Hide#M.2 Slot(s)|Yes (M.2)|#Hide#No. LAN Ports|1 x LAN|#Hide#Max LAN Speed|2.5GB LAN|#Hide#RGB Lighting|Out of the box RGB lighting
22 Items
Data sheet
- Click ua href-https
- //www.asrock.com/mb/AMD/B650%20LiveMixer/Specification.asp#CPU target-”_blank”stronghere/strong/a/u for CPU support
Specific References
- EAN13
- 4710483941016
- MPN
- B650 LIVEMIXER
