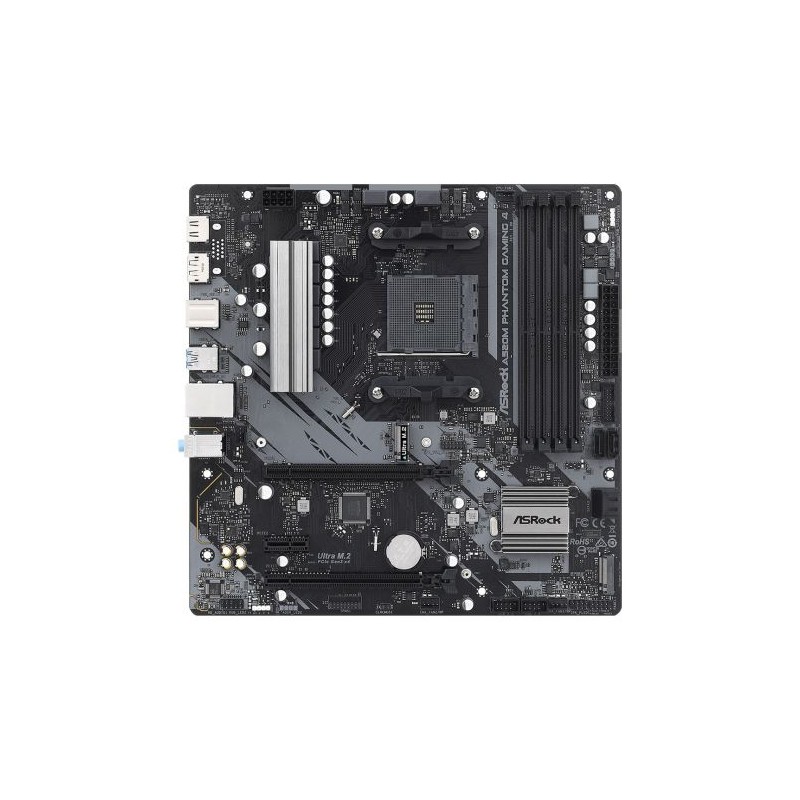

Asrock A520M PHANTOM GAMING 4, AMD A520, AM4, Micro ATX, 4 DDR4, HDMI, DP, 2x M.2
£47.95
Tax included
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* 8 Power Phase Design with Digi Power Supports DDR4 4733+ (OC) 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) 6 x USB 3.2 Gen1 (2 Front, 4 Rear) 6 x USB 2.0 (4 Front, 2 Rear) Realtek Gigabit LAN 8 Power Phase Design Featuring sturdy components
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Motherboard Type|Desktop|Form Factor|Micro ATX|Socket|AMD AM4|Chipset|AMD A520|#Hide#DDR Type|DDR4|CPU Support|Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs|RAM Technology|DDR4 (Dual Channel)|RAM Slots|4 x DIMM|RAM Speeds|Up to 4533+(OC)|Maximum Memory|128GB|Graphics|Integrated Graphics Processor*
Graphics specifications may vary between CPU types|Graphics Ports|1 x HDMI
1 x DisplayPort 1.4|Multi-GPU Support|-|PCI/PCI Express|2 x PCIe 3.0 x16
1 x PCIe 3.0 x1|Storage|4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - SATA & PCIe|RAID|RAID 0, 1, 10|Wireless|-|LAN|GB LAN|Audio|7.1 CH HD Audio (Realtek 887/897 Audio Codec)|USB Ports Supported|6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)|Back Panel I/O Ports|1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN Port with LED
HD Audio Jacks|Internal I/O Connectors|1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1|Accessories|2 x SATA Data Cables
2 x Screws for M.2 Sockets|Additional Features|See Overview|Package Type|Retail|Package Weight|0.7920 kg|Warranty|2 Year Replacement Warranty|#Hide#M.2 Slot(s)|Yes (M.2)|#Hide#No. LAN Ports|1 x LAN|#Hide#Max LAN Speed|GB LAN
28 Items
Data sheet
- Click ua href-https
- //www.asrock.com/MB/AMD/A520M%20Phantom%20Gaming%204/index.asp#CPU target-”_blank”here/a/u for CPU support
i*Note
Specific References
- EAN13
- 4710483932915
- MPN
- A520M PHANTOM GAMING 4
No customer reviews for the moment.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* 8 Power Phase Design with Digi Power Supports DDR4 4733+ (OC) 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) 6 x USB 3.2 Gen1 (2 Front, 4 Rear) 6 x USB 2.0 (4 Front, 2 Rear) Realtek Gigabit LAN 8 Power Phase Design Featuring sturdy components
