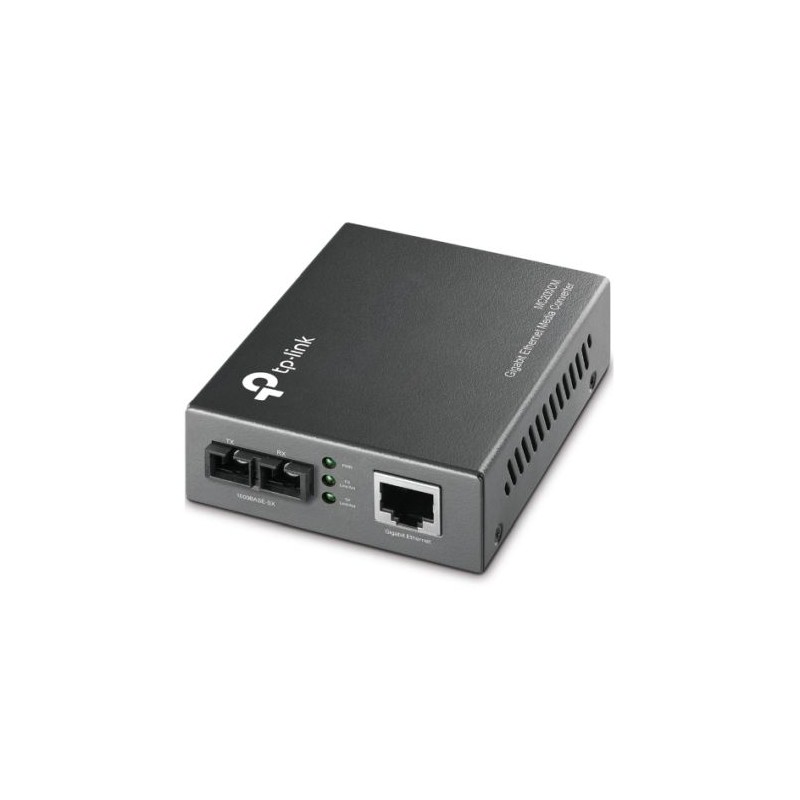

TP-LINK (MC200CM) Gigabit Multi-Mode Media Converter
£22.22
Tax included
Gigabit Multi-Mode Media Converter 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Complies with IEEE 802.3ab and IEEE 802.3z Extends fiber distance up to 0.55km The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module in
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Type|Multi-Mode Media Converter|Enclosure Type|External|Basic Functions|Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber|Ports|1 x 1000M SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)|Standards and Protocols|IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z|Wave Length|850nm|Network Media 10BASE-T|Multi-mode Fiber|Network Media 1000BASE-T|UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)|Network Media 1000BASE-FX|Multi-mode Fiber|Transmission Distance|0.55km|LED Indicators|PWR, Link/Act|Dimensions (WxDxH)|94.5 x 73.0 x 27.0 mm|Power Supply|External Power Adapter|Environment|Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing|Package Contents|Media Converter MC200CM
Power Adapter
Installation Guide|Package Type|Retail|Package Weight|0.5000 kg|Warranty|2 Years
12 Items
Data sheet
- Operating Temperature
- 0C~40C (32F~104F)
Storage Temperature
Specific References
- EAN13
- 6935364081331
- MPN
- MC200CM
