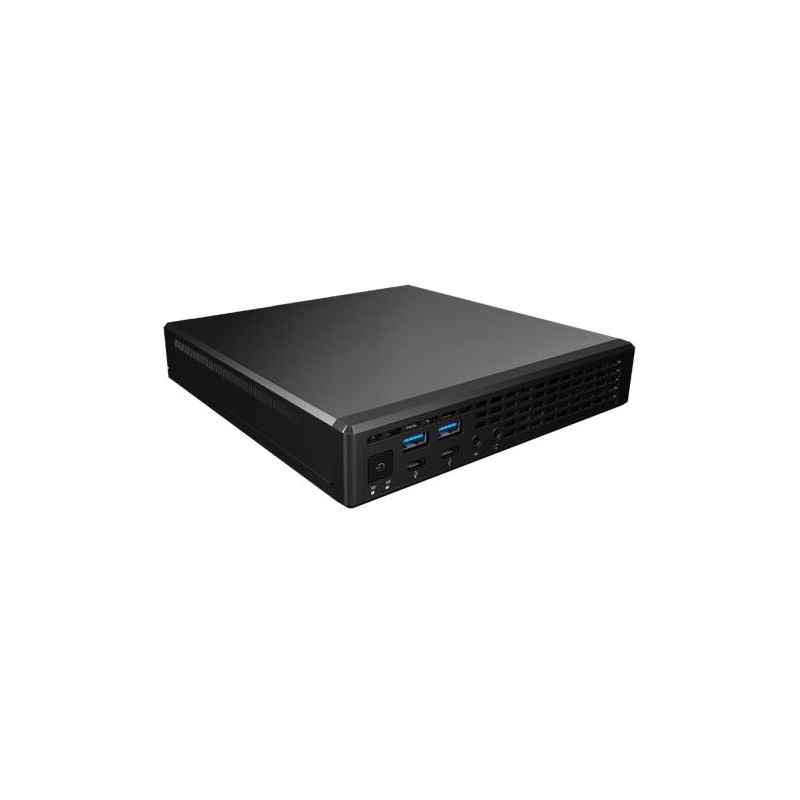

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM,
£149.78
Tax included
#Hide#Fully Built / Barebone|Barebone|Tower / Small Form Factor|Small Form Factor|Chassis|Asrock Jupiter Mini Desktop|Processor|None|Processor Details|Supports AMD AM4 Socket 65W APUs|Chipset|AMD X300|Graphics|Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU|#Hide#Processor|None|Memory|None|Memory Details|2 x SO-DIMM DDR4
Max. 64GB (non-ECC)
Cezanne/Renoir APU – DDR4-3200MHz
Picasso/Ryzen APU - DDR4-2933MHz|Hard Drive|None|SSD Drive|None|Optical Drive|None|Supported Drives|1 x SATA 6Gb 2.5" 7mm/9.5mm Hard Drive
M.2 2280 PCIe Gen3 x4 & SATA 6Gb|Operating System|No O/S|Front I/O|2 x USB 3.1 Gen1 Type-C
2 x USB 3.1 Gen1 Type-A
1 x Head Phone with Mic Jack
1 x Mic-In|Back I/O|1 x VGA
1 x HDMI
1 x DisplayPort
2 x USB 3.1 Gen1 Type-A
2 x USB 2.0
1 x RJ45|LAN|1 x RJ45 Gigabit LAN
Re
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.
- AM4 Socket APUs, up to 65Watts
- AMD X300 Chipset
- 178 x 178 x 34mm / 1.07L
- 2 x USB 3.2 Gen1 Type-C
- 4 x USB 3.2 Gen1
- 2 x USB 2.0
- DisplayPort, HDMI, D-Sub
- M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
- M.2 (2230) slot for Wi-Fi
- 2W Speaker, TPM V2.0
- Support DASH Standard
Advanced AM4 Platform
AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W
High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)
High Performance Thermal
Copper based heatsink
High efficiency blower
Ultra M.2 Slot
SATA 6Gb Hard Drive Bay
M.2 For Wi-Fi Module
Dual Storage & Wireless
Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)
SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD
M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi
Front Side
Rear Side
Rich USB Connectivity
Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
3 Video Outputs
Enhanced Creativity
3 Video Outputs
HDMI 4K@60Hz
DisplayPort 4K@60Hz
D-Sub FHD@60Hz
Supports up to 3 displays simultaneously
DASH LAN(optional)
TPM 2.0 (optional)
Chassis Intrusion
Native 2W Speaker
Enterprise Solutions
DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.
TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.
Anti-Thief & Speaker
Chassis Intrusion
Get notification if chassis of Jupiter has been opened.
Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.
Tri-direction VESA mount let you mount Jupiter behind monitor.
VESA Mount & Stand
Tri-direction VESA mount let you mount Jupiter behind monitor.
Use Vertical stand to save desk space.
2 Items
Data sheet
- Motherboard
- 170 x 170 (Proprietary)
Barebone - Integrated cooling solution Copper based heatsink High efficiency blower Kensington lock Key lock VESA
- 75 x 75mm / 100 x 100 mm
Chassis Intrusion
Vertical stand included
Specific References
- EAN13
- 4710483942853
- MPN
- 90BXG3Z01-A20GA0F
